FRASCOLD C-TSH8 30 120Y

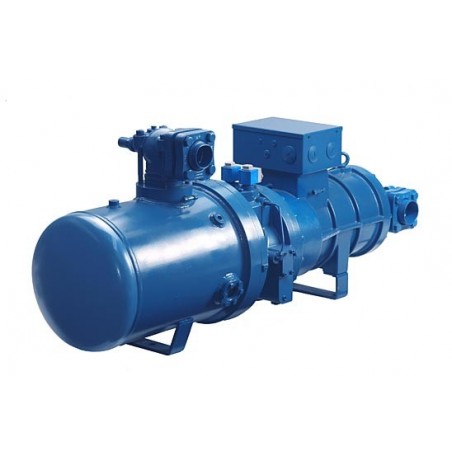

Compresor semihermético de tornillo FRASCOLD C-TSH8 30 120Y.

Semihermetic-Screw FRASCOLD C-TSH8 30 120Y.

The accurate design, the manufacturing through a large number of line with many working centres at numerical control and the accurate quality tests, grant the performances excellence of compressors C-TSH8.

• Exclusive design of screw profiles with a ratio 5:6 between male screw and female screw.
• Electrical motor with very high efficiency.
• Flowing through slots of the rotor, suction gas is centrifugated for liquid separation.
• Optimized Vi built-in volume ration.
• Calibrated lubrication of the screws.
• Sturdy and simple design of mechanical parts carefully manufactured.
• Roller bearings largely sized.
• Simple and efficient capacity control device.
• High efficiency electric motor with part winding start.
• Low noise level and smooth vibration less running.
• Excellent volume capacity ratio.
• Light weight.

Datos técnicos: (Modelo C-TSH8 30 120Y)

• Tecnologías:Velocidad constante
• Aplicaciones: Media/alta
• Bomba Calor: Sí
• Refrigerantes: R134a
• Desplazamiento m3: 120.00
• HP: 30
• Carga inicial de aceite: 9 kg
• Conexión tubería aspiración: 2 1/8”
• Conexión tubería descarga: 1 5/8”
• Intensidad en arranque (rotor bloqueado): 95 A (PWS) / 152 A (DOL)
• Intensidad máxima de servicio: 68 A
• Máxima temperatura aceite: 110 °C
• Máxima temperatura de descarga: 120 °C
• Máxima temperatura del bobinado: 130 °C
• Nivel sonoro: 91,7 dB
• Peso: 308 kg
• Ratio volumen compresor (Vi): 3.3

Modelos: (Media/alta Temperatura R134a)

• FRASCOLD C-TSH8 30 120Y
• FRASCOLD C-TSH8 40 150Y
• FRASCOLD R-TSH8 40 120Y
• FRASCOLD C-TSH8 50 186Y
• FRASCOLD R-TSH8 50 150Y
• FRASCOLD C-TSH8 60 210Y
• FRASCOLD R-TSH8 60 186Y
• FRASCOLD C-TSH8 70 240Y
• FRASCOLD R-TSH8 70 210Y
• FRASCOLD C-TSH8 80 270Y
• FRASCOLD R-TSH8 80 240Y
• FRASCOLD C-TSH8 90 300Y
• FRASCOLD R-TSH8 90 270Y
• FRASCOLD C-TSH8 100 360Y
• FRASCOLD R-TSH8 100 300Y
• FRASCOLD R-TSH8 120 360Y

Consulte en el catálogo todos los modelos y datos técnicos.
