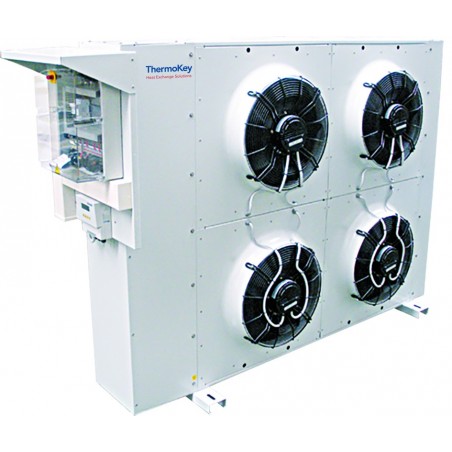

THERMOKEY TURBO-LINE

Condensador THERMOKEY TURBO-LINE

Condenser THERMOKEY TURBO-LINE

• Aplicación: Condensación de gas
• Gama potencias desde 10 hasta 1200 ka (R404A, Tc= 40 °C, T1= 25 °C)
• Diámetro ventiladores Ø 500, 630, 800 mm, motor AC o EC

Características técnicas:

• Geometría alta eficiencia
• Posibilidad módulos, desde 1 hasta 16 ventiladores
• 8 niveles sonoros
• Tubos en cobre o inox AISI 304
• Paquete aleteado disponible en diferentes materiales
• Accesorios disponibles
• Serie Premium disponible con ventiladores Ø 500 y 630 mm
• Carrocería en acero galvanizado pintada

A completely new series of air cooled axial condensers is born from Thermokey’s experience. This series of axial condensers uses 3/8” tubes with a special internal riffling and a high efficiency fin.

The fin has been specially designed to guarantee a high thermal exchange coefficient with low air pressure drops by combining both special tubes and fins the following features can be achieved:
- Maximum capacity related to the heat exchanger’s dimensions.
- Minimum refrigerant charge.
- The most strict environment standards for sound pollution can be met.

The declared capacities and the sound levels are certified at the laboratories of the TÜV – Technischer Uberwachungs Verein Bayern Sachsen Germany – according to the ENV 327 and EN ISO 3744 norms. This new series of air cooled axial condensers uses fans with three different diameters : 500, 630 and 800 mm. The number of fans can go from 1 to 16 in 1 or 2 rows to reach capacities from 8 to 1200 kW at standard nominal conditions. To guarantee solidity and strength the casing is manufactured in galvanized steel and oven painted with a polyurethane resin (the standard version is in RAL 7035). Double speed 400/3/50Hz fans are used to obtain 8 different sound levels for each available fan diameter.

A complete series of accessories are available among which are:
- Phase cut, voltage step and inverter speed controllers.
- Standard electrical boxes and special versions on request.
- Fins in various materials (Aluminium, Copper, Prepainted Aluminium and Double coated).
- Special single phase electric fan motors (for the 500 and 630mm diameters), 60Hz and various voltages.

Modelos:

• THERMOKEY MICROCHANNEL
• THERMOKEY TURBO-LINE
• THERMOKEY TURBO-J

Consulte más datos técnicos en el catálogo.
