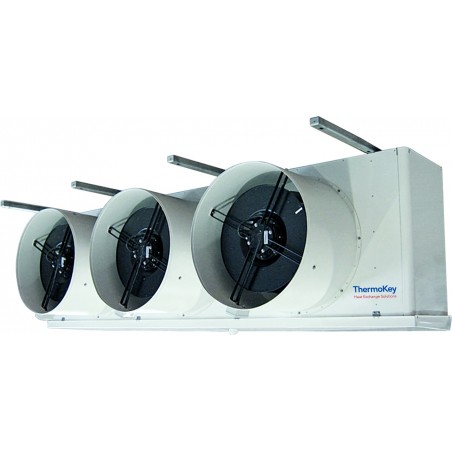

THERMOKEY RADIAL

Evaporador THERMOKEY RADIAL

Evaporator/Unit Cooler RADIAL

• Aplicación: Canalización de aire
• Gama potencias:

- funcionamiento expansión directa: desde 10 hasta 115 kW
(R404A, Te= 2 °C, T1= 12 °C, RH= 75%)
- funcionamiento brine: desde 7 hasta 135 kW
(Glycol 30%, Tw1= 0 °C, Tw2= 4 °C, T1= 12 °C, RH= 75%)

• Ventiladores radiales canalizados, Diámetro Ø 560, 630 mm

Características técnicas:

• Paso de aletas: 4.5 - 7.0 mm
• Tubos en cobre o inox AISI 304
• 150 Pa Presión estática externa
• Posibilidad módulos, desde 3 hasta 4 ventiladores
• Desescarche eléctrico disponible
• Carrocería en aluminio, disponible carrocería en acero galvanizado pintado RAL9010

CAPACITIES AND APPLICATIONS
This type of unit cooler finds application in the refrigeration field where is required a ventilation with external static pressure of 150 Pa, in order to allow air distribution through socks (textile, plastic or other material) and / or cold rooms and warehouses of large dimensions. The simplicity of assembly and the wide range of radial fans available allow a wide response to the market not only for the large external static pressure, but also for the low sound level expressed, particularly required in processing rooms.

HEAT EXCHANGER COIL
The heat exchanger is made with a new geometry, specific for refrigeration, with high efficiency corrugated of aluminum fins on the surface and with copper tubes with a diameter of ½“ internally grooved for direct expansion (D) and diameter of 5/8” for pump functioning (P).
Radial unit coolers DX: Series THT, TMT
THT Series: 4,5 mm fin spacing for high temperatures ≥ 2 °C
TMT Series: 7 mm fin spacing for medium temperature < 2 °C
Radial unit coolers Brine: Series THB, TMB
THB Series: 4,5 mm fin spacing for high temperatures ≥ 2 °C
TMB Series: 7 mm fin spacing for medium temperature < 2 °C

CASING
The casing is manufactured entirely in protected aluminum and structured to enable excellent robustness and easy interchangeability for different functioning and defrosting systems.

FANS
All models are equipped with 50 Hz three-phase fan motors with a level of protection IP 54 and thermal contacts inside.
(6P63) = 6 poles Fan diameter 630 mm
(4P56) = 4 poles Fan diameter 560 mm
(4P63) = 4 poles Fan diameter 630 mm
The assembly of radial fans on the unit cooler is achieved by means of a cylindrical box containing the fan. The choice of the radial fan model will be subject to the market demand depending on the cooling capacity, the available external static pressure required from the sock and the noise level of the unit.

Series:

• THERMOKEY LIGHT CUBIC
• THERMOKEY COMERCIAL DOBLE FLUJO
• THERMOKEY INDUSTRIAL
• THERMOKEY INDUSTRIAL DOBLE FLUJO
• THERMOKEY BLAST FREEZER
• THERMOKEY FRUIT COOLERS
• THERMOKEY RADIAL

Modelos:

• THERMOKEY THT
• THERMOKEY TMT
• THERMOKEY THB
• THERMOKYE TMB

Consulte en el catálogo más datos técnicos.
