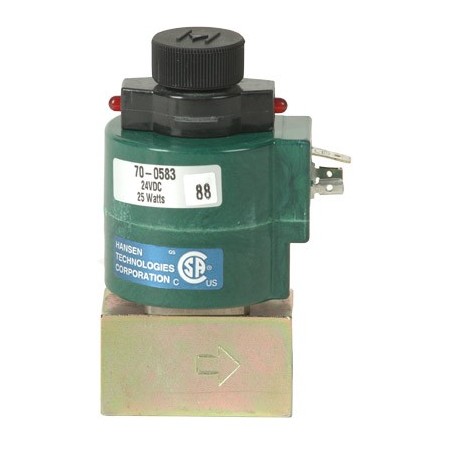

Válvula solenoide HANSEN HS2

Solenoid valve HANSEN HS2

Vávulas solenoides HANSEN diseñadas y fabricadas especialmente para refrigeración industrial, aptos para líneas de liquido, gas caliente.

Características:

• Tamaños ½ hasta 6:
  • HS2 – ½¨, ¼¨ (paso 4 mm) roscar
  • HS6 – ½¨, (paso 4 mm) bridas
  • HS8 – ½¨, (paso 13 mm) bridas
  • HS7 – ¾¨, - 1 1/4¨
  • HS4A- ¾¨ - 6¨
• Presión de trabajo máx.: 27 Bar.
• Temperatura de trabajo: -50/+115ºC.
• Tensiones bobinas: 230 V/ 24V.
• Conexiones eléctricas conector DIN.
• Aptos para los refrigerantes más usuales incluidas NH3. Nota: Para CO2 existe versión de PN 40.

Hansen Solenoid Valves are designed and built specifically for industrial refrigeration. These high-quality valves are compact, strong-bodied, and reliable. Stainless steel pistons or disc-pistons with Teflon seals are used to overcome the problem of valve sticking due to dirt or lack of oil. Pilot seats are polished stainless steel on Teflon discs and main valve seats and discs align for tight closing. Each valve is tested on a sensitive leak detection system to ensure reliable operation, safety, and tightness.

Solenoid Valves come in 5/32" to 6" (4 mm to 150 mm) sizes. Options include close-coupled strainers and pilot lights. Solenoid coil connection styles can be standard 1/2" fitting for conduit, DIN plug coils, or coil with junction box. Applications: Some typical applications include high pressure or low pressure liquid feed, recirculating liquid control, defrost hot gas control, suction shutoff, purge line, and wherever a strong-opening, tight-closing valve is required.

Features:

• Compact, low cost
• Low wattage, Hansen standard coil
• 300 psi (20 bar) MOPD
• Stainless steel seat orifice
• Removable solenoid tube
• Heavy-duty, direct lift
• CSA Certified
• Non-asbestos gaskets

Modelos:

• HANSEN HS2
• HANSEN HS6
• HANSEN HS8
• HANSEN HS7
• HANSEN HS4A

Consulte más datos técnicos en el catálogo.
