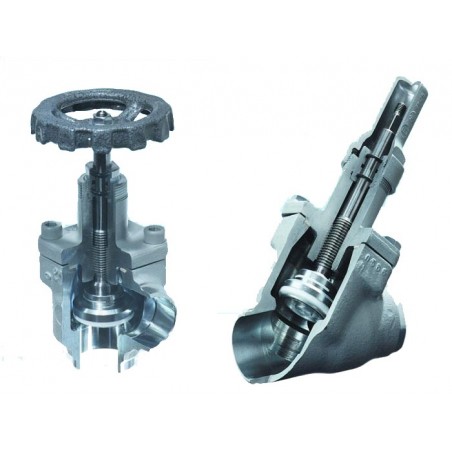

ROBINET FF VÁLVULAS DE CIERRE

Válvulas de cierre:

  • Diámetros de paso DN 10 hasta DN 450.
  • Paso recto y paso ángulo.
  • Con volante ó caperuza.
  • Material resistente a bajas temperaturas (-50ºC).

Solicite Oferta

Lee masShow less
Referencia:
10000014
Favorito0
Añadir para comparar0
A lista de deseos
Descripción

Válvulas de cierre ROBINET FF

Globe Shut-Off Valve ROBINET FF



Las válvulas de cierre manuales en acero al carbono están diseñadas específicamente para la industria frigorífica, y cumplen con todas las Directivas, Reglamentos y Normas de fabricación más actuales.

  • Gama de tamaños: DN10 – DN 450
  • Rangos de presiones: – PN25 (estándar), PN 40 y PN 65 ver anexos técnicos.
  • Rango de temperaturas: -50ºC/+110ºC ( estándar)
  • Temperaturas inferiores a –50ºC: consultar
  • Refrigerantes: Aptas para todos los refrigerantes normales según EN 378-1, incluidos NH3 y CO2. Empleo con fluidos inflamables y especialmente corrosivos requiere consulta a fábrica.
  • Fluidos secundarios y aceites lubricantes: pueden emplearse con aceites lubricantes, salmueras aguas glicoladas y otros fluidos secundarios, pero requieren consulta previa a fábrica.



Características:

  • Materiales de cuerpo y cabezal en acero de grano fino forjado o fundido (depende del DN) para baja temperatura. Vástago en acero inoxidable pulido, cierre interior con tornillo de TEFLÓN fácilmente recambiable y cierre hermético hacia el exterior con juntas tóricas de NEOPRENO.
  • Valores Kv muy altos, significa baja pérdida de presión.
  • Peso ligero gracias al empleo de materiales de alta calidad y resistencia.
  • Cierre inverso para sustitución de las juntas tóricas del prensa con la instalación en servicio y sin riesgo de fugas de refrigerante.
  • Sellado interior perfecto con anillo de TEFLÓN fácilmente recambiable.
  • Cierre hermético hacia el exterior mediante juntas tóricas dobles y cámara intermedia de descompresión.
  • Disponible con caperuza y volante.
  • Cuello largo para aislamiento.
  • Versión con cuello más alargado para muy bajas temperaturas (espesor de aislamiento excepcional), ver tabla en anexos.
  • Extremos para soldar en varias versiones:
    • M = extremos mecanizados con espesor según DIN 2448
    • S = extremos mecanizados con espesor según ANSI B36.25 (standard )
    • B = extremos para soldadura blanda (tubo de cobre)
    • K = extremos para soldar socket weld.
    • H = extremos para tubo inoxidable



RFF valves can be supplied with a material certificate for body and bonnet which guarantees the impact strength at -50°C.

The material test for the branch connections for the straight valves DN 300 and 350 mm is certified to -46°C.

RFF valves are constructed of low temperature carbon steel with stainless steel spindles and sealed by two O-rings with a special oil filled groove which provides a complete gas tight seal.

The PTFE seat provides positive shut-off with a minimum amount of force.

All valves should be closed by turning the spindle clockwise. The O-rings can be replaced when the spindle is back-seated fully. Maintenance of the O-rings can be carried out without shutting down the plant.

By using valves fitted with caps on installations using odourless refrigerant extra security is ensured. Gas refrigerant is contained under the cap which is manufactured with small hole drilled under the gasket. When the cap is unscrewed, any build-up of refrigerant gas inside the cap will escape through this hole and can be heard as a whistling noise. This is an indication that the O-rings in the gland nut have been damaged or are in poor condition.

All valves can be fitted with handwheels or caps.

To assist opening large diameter valves (150 mm to 450 mm) it may be necessary to fit a small by pass valve at or above the following differential pressures:

  • DN 150 mm : P > 21 bar
  • DN 200 mm : P > 14 bar
  • DN 250 mm : P > 9 bar
  • DN 300 mm : P > 6 bar
  • DN 350 mm : P > 4.5 bar
  • DN 400 mm : P > 3.5 bar
  • DN 450 mm : P > 3.5 bar



Consulte más datos técnicos en el catálogo.
